Concentric
Use this to ...
- Connect center points to each other.
- Play the video to see how to assign a concentric constraint. Do not adjust your volume; there is no sound associated with this video.
Key Points
- Attaches a center point of an arc/circle to the center point of another arc/circle.

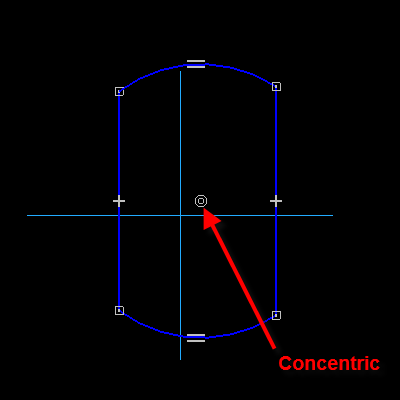

- Concentric displays two small circles at the center point of the two selections.
Process: Creating a Concentric Relationship
1. Click Concentric on the Features and Relationships toolbar.
2. Pick the first arc/circle.
3. Pick the second arc/circle. The first selection moves to fit the second.
